Malux TrainTalk™
Reliable railway communication is not only important, but vital. Secure communication between trains, train staff and traffic management is crucial to avoid accidents.

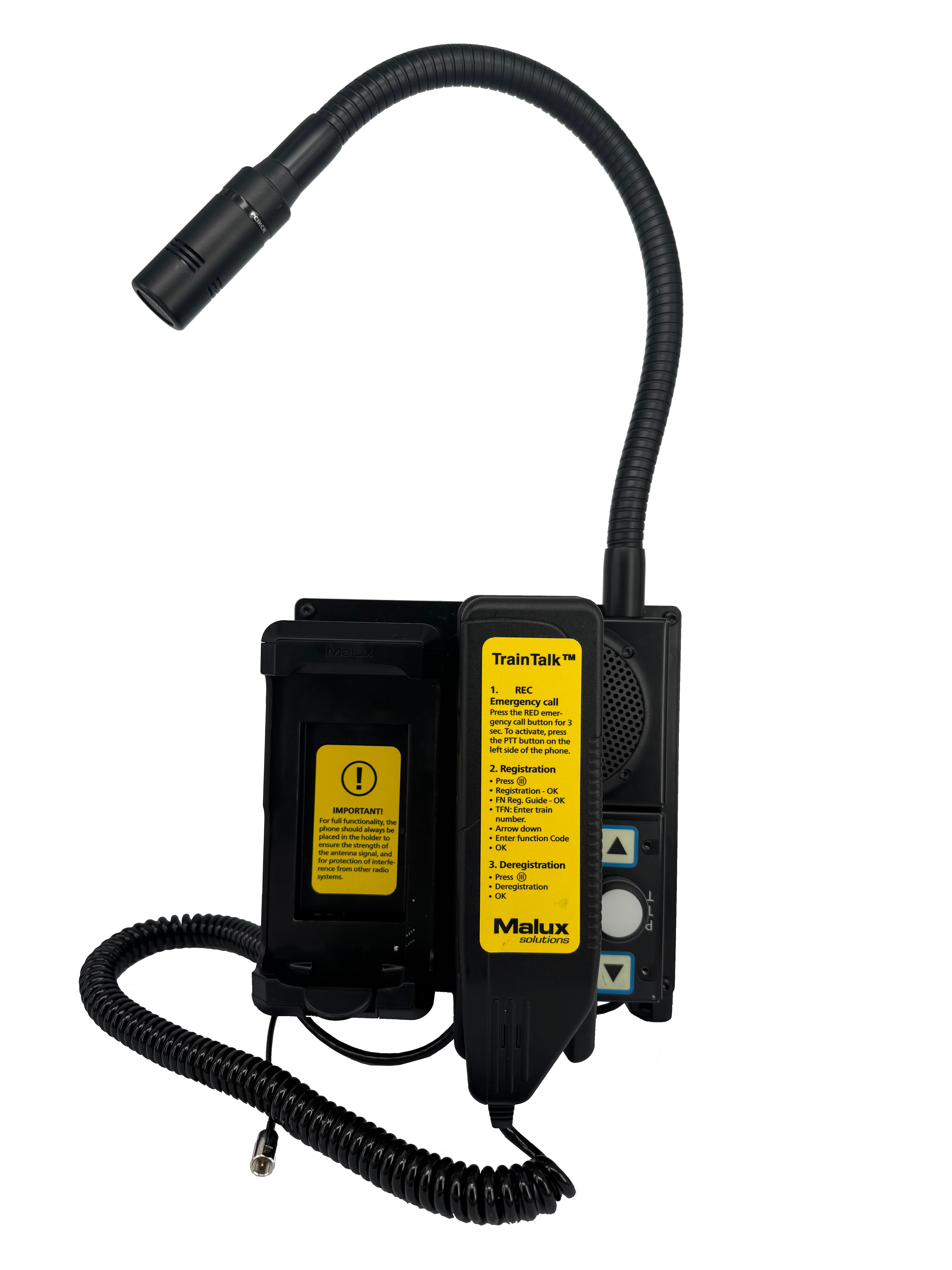

GSM-R 2W TrainTalk ™ Compact
The most compact TrainTalk model.
A Compact design that can be installed in different places in the driver’s cab. Very suitable for yellow vehicles on rails where space is tight. It’s new robust and slim design make it perfect to be installed where no other solution fits.
For SED OPH-810R or AllwayTon OPH-210R
The phone is purchased separately depending on needs.
Fulfil EIRENE FRS 16.0 3.2.5
EN 50155
EN 50121-3-2 2017
EN 50121-4 2017
EN 61000-6-4 2019
EN 45545-2 2020

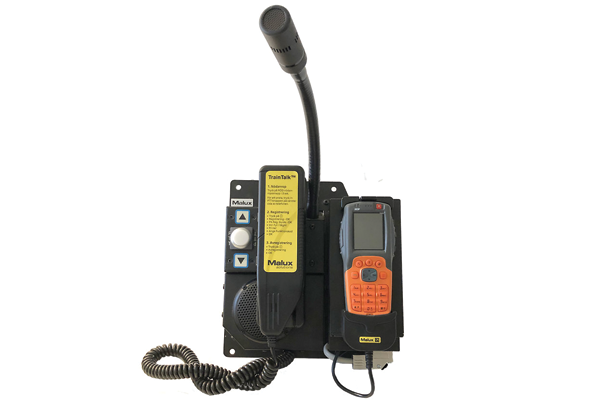

GSM-R 2W TrainTalk™ OVK6
For SED OPH-810R or AllwayTon OPH-210R
A complete unit that easily and quickly replaces Sagem OVK3 and Malux OVK4 or OVK5 solution that is already in many trains. This version is newly updated in beginning of 2025. See more:TrainTalk ™ OVK6
For SED OPH-810R or AllwayTon OPH-210R
The phone is purchased separately depending on needs.
Fulfil EIRENE FRS 16.0 3.2.5
EN 50155
EN 50121-3-2 2017
EN 50121-4 2017
EN 61000-6-4 2019
EN 45545-2 2020

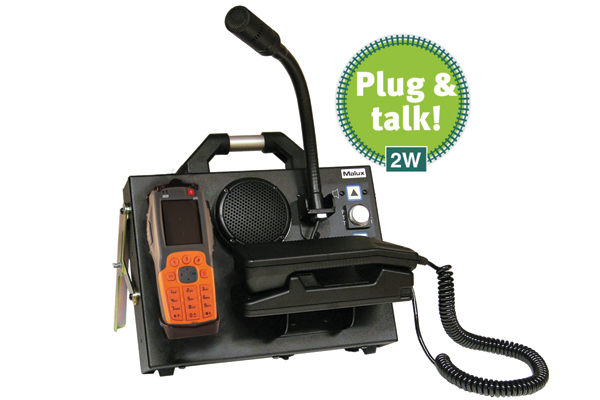

GSM-R 2W TrainTalk™ Portable and Desktop
A case that can be easily moved or easily mounted with a keyhole attachment to a wall or console. Portable in the correct meaning. Also available in a desktop version, a box that includes everything.
Only sold as special project!
The phone is purchased separately depending on needs.
Fulfil EIRENE FRS 16.0 3.2.5
EN 50155
EN 50121-3-2 2017
EN 50121-4 2017
EN 61000-6-4 2019
EN 45545-2 2020

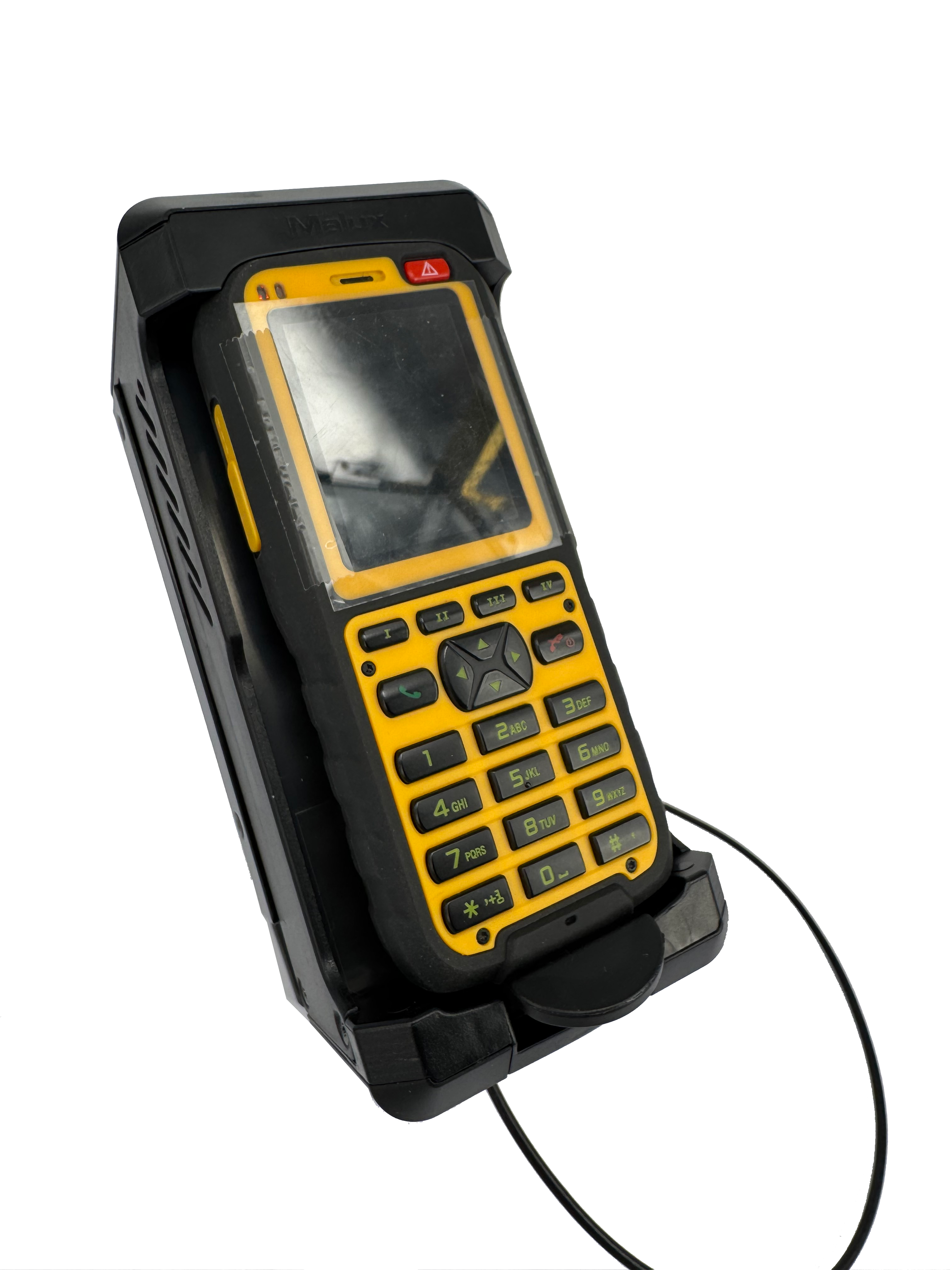

Cradle kit SED
Designed to easily upgrade all existing Malux TrainTalk™ models including Malux OVK4 and Bury CarTalk systems to work with the new SED phones OPH-810R and OPS-810R. Cradle Kit SED can replace the TiGR350R holder without rebuilding.
Watch the movie: How to upgrade Malux Train Talk
Cradle Kit SED can also be used separately without Train Talk if you have a need of external antenna.
The Cradle Kit SED 2.0 provides a 4 – 5 dB higher antenna signal than Sagem/Sierra TiGR350R Cradle and the insertion loss is only 1,5 – 2,5 dB, which provides a better coverage.
The phone is purchased separately depending on needs.
Fulfil EIRENE FRS 16.0 3.2.5
EN 50155
EN 50121-3-2 2017
EN 50121-4 2017
EN 61000-6-4 2019
EN 45545-2 2020
Malux TrainTalk™ Cradle Kit AWT 900Mhz or 1800Mhz
Designed to easily upgrade all existing Malux TrainTalk™ models including Malux OVK4 and Bury CarTalk systems to work with the AWT phones OPH-210R. Cradle Kit AWT can replace the TiGR350R holder without rebuilding.
Cradle Kit AWT can also be used separately without Train Talk if you have a need of external antenna.
The Cradle Kit AWT provides a 4 – 5 dB higher antenna signal than Sagem/Sierra TiGR350R Cradle and the insertion loss is only 1,5 – 2,5 dB, which provides a better coverage.
Cradle Kit AWT can be delivered in two versions: 900Mhz or 1800Mhz.
The phone is purchased separately depending on needs.
Fulfil EIRENE FRS 16.0 3.2.5
EN 50155
EN 50121-3-2 2017
EN 50121-4 2017
EN 61000-6-4 2019
EN 45545-2 2020
